Audio Pmod

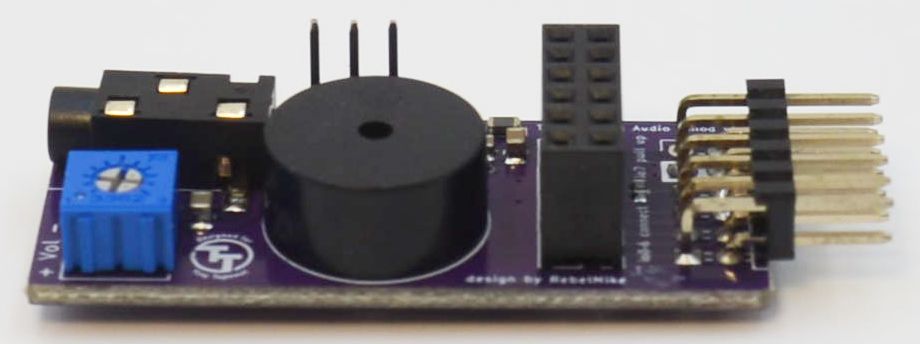

Audio Pmod board

This board comes fully assembled - no soldering required!

Note: none of the existing TT06 projects have a matching pin out for this Pmod, as far as we can tell. Future TT shuttles (such as TT08) have several projects that have compatible PWM audio output on pin uio[7], including many of the demoscene projects.

Some projects on TT06 and previous TT shuttles can be wired up to this Pmod for testing, such as:

• Parallel / SPI modulation tester (TT06 - untested)
• AudioChip V2 (TT06 - untested)
• Classic 8-bit era Programmable Sound Generator AY-3-8913 (TT05 - tested)

View schematics online (using KiCanvas)

GitHub repository: https://github.com/MichaelBell/tt-audio-pmod
