QSPI Pmod

€20.00
In stock: 22 available
Product Details

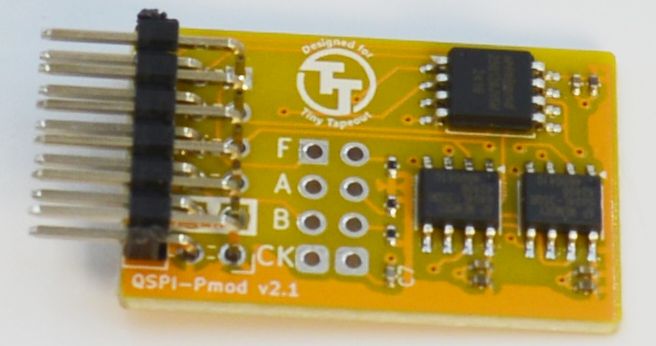

QSPI Pmod board

This board comes fully assembled - no soldering required!

Includes the following memories:

Quantity

Type

Part Number

Description

1

Flash

25Q128JVSM

128M-bit QSPI Flash chip

2

PSRAM

APS6404L-3SQR

64M-bit QSPI PSRAM

Should work with the following projects on TT06:

  • TinyQV Risc-V SoC (not yet tested)
  • KianV uLinux SoC (tested, confirmed to work)
  • FazyRV Risc-V SoC (not yet tested)

View schematics online (using KiCanvas)

GitHub repository: https://github.com/mole99/qspi-pmod


Note that this Pmod is compatible only with TT04 and later.
