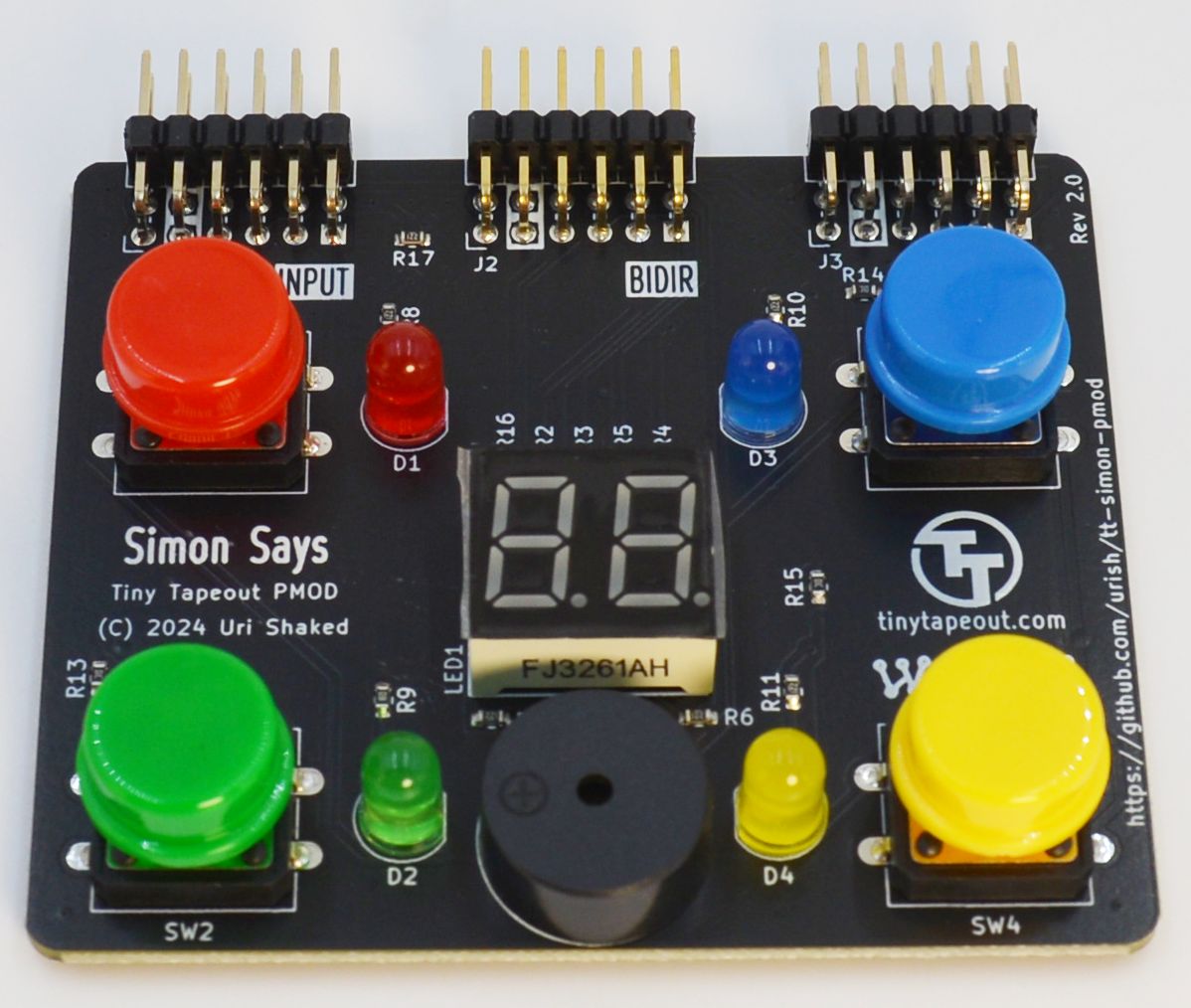

Simon Pmod

Pmod for the "Simon Says" game included in Tiny Tapeout shuttles 3.5, 4, 5, 6, 7.

Includes:

• 4x colourful LEDs
• 4x colourful pushbuttons
• 1x two-digit common cathode 7-segment display
• 1x piezo buzzer

KiCad PCB files: https://github.com/urish/tt-simon-pmod/releases/tag/rev-2.0

This board comes fully assembled - no soldering required!

Note that this Pmod is compatible only with TT04, TT05, TT06 and TT07.
