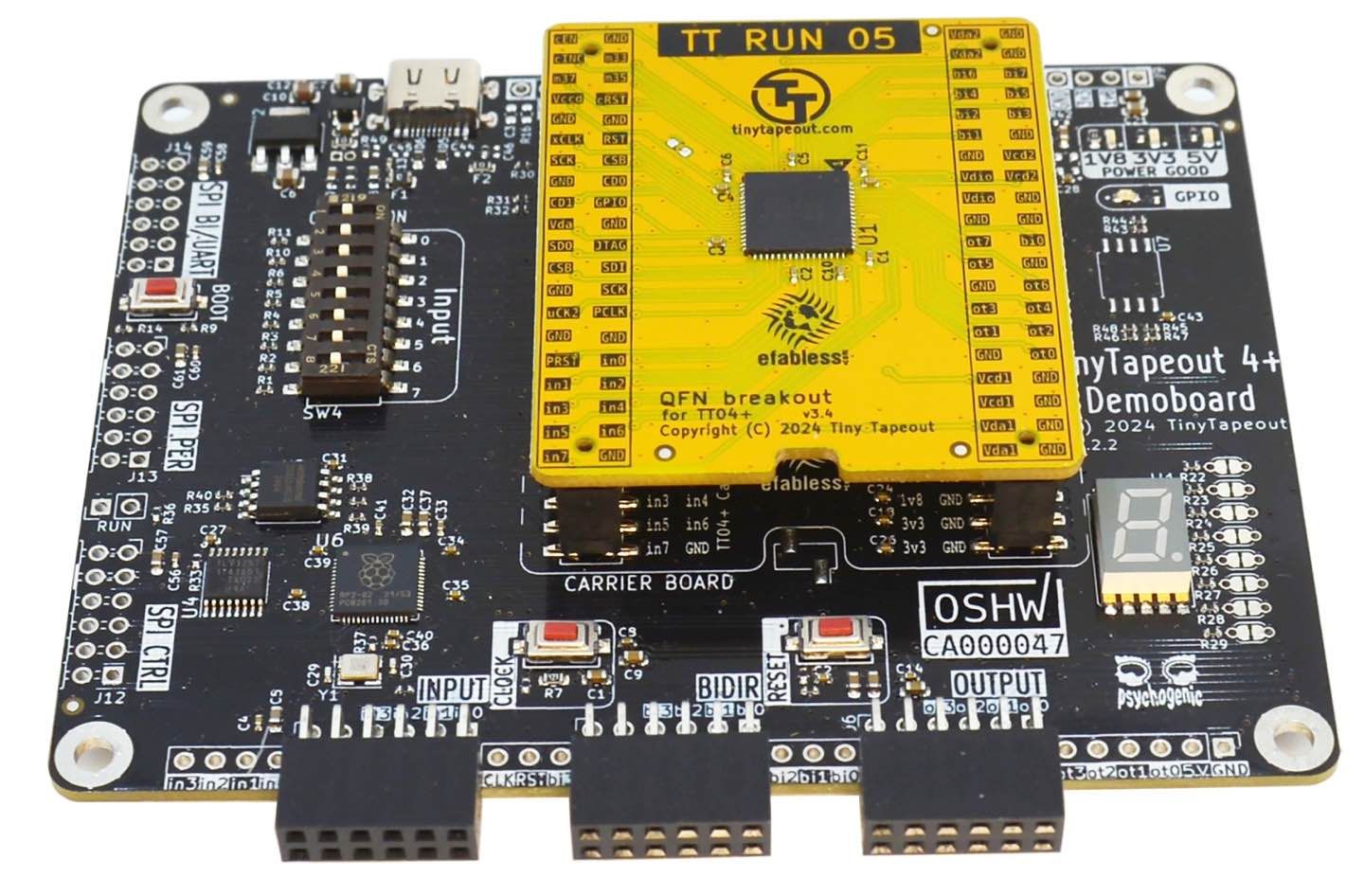

TT05 Development Kit

TT05 Development Kit

This was our first chip with experimental mixed signal support, boasting a ring oscillator and a DAC from the university of Linz. We also improved performance of the MUX by splitting it in half to reduce parasitics. 174 designs were submitted including Flappy Bird, various neural networks, the SN76489 retro sound chip and a guitar tuner.

For more information check the chip’s datasheet:

https://tinytapeout.com/runs/tt05/

This chip is compatible with the following Pmods: TinyVGA, Simon.

This kit comes fully assembled - no soldering required!
