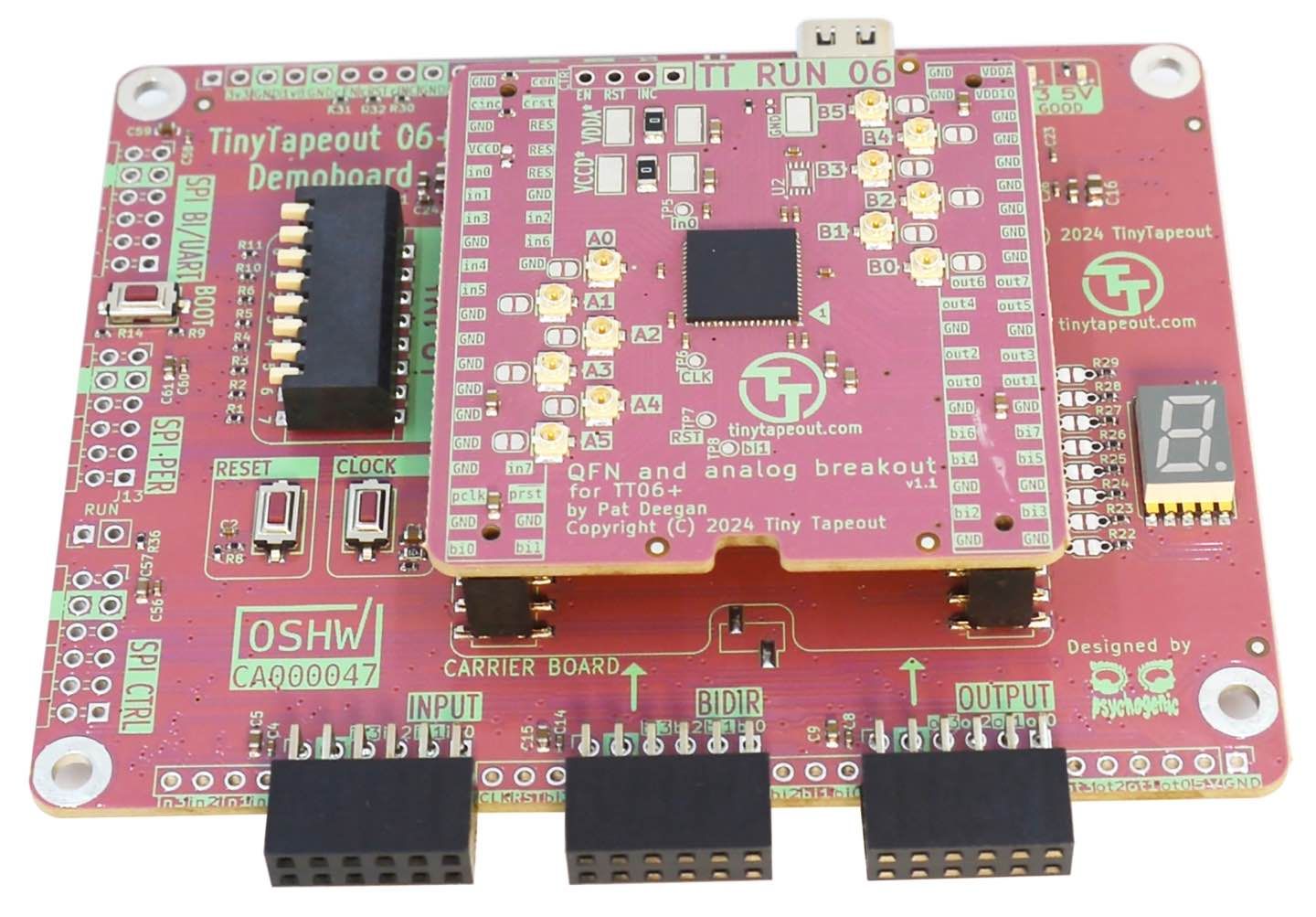

TT06 Development Kit

TT06 Development Kit

In this chip we added power gating for all designs and enabled support for mixed-signal. We also moved to OpenFrame, a larger padring that gave us about 30% more space. 238 projects were submitted including 24 analog or mixed-signal. This chip contains a RISC-V SoC that can boot uLinux, a RISC-V microcontroller with micropython support, the 8080 and 4004 CPUs, Pong, a retro gaming console, a ring shaped ring oscillator made of skulls, the 555 timer and an 8 bit SAR ADC.

For more information check the chip’s datasheet:

https://tinytapeout.com/runs/tt06/

Board files for this product can be found here: https://github.com/TinyTapeout/pcb-files/tree/main...

This chip is compatible with the following Pmods: TinyVGA, QSPI, Audio, Simon.

This kit comes fully assembled - no soldering required!

🚀 TT06 in Space! 🚀

One of the TT06 chips was sent into space in November 2025, catching a ride into low earth orbit aboard a HUNITY PocketQube platform and a SpaceX Falcon 9 rocket.

More information about the satellite can be found here:

https://www.albaorbital.com/bme-hunity

https://db.satnogs.org/satellite/LLEW-4775-7241-6889-7282

For further details about experiments and communication with the chip in space head over to the #spasics channel on the Tiny Tapeout Discord server.

Credits to: Tibor Herman for the Hunity satellite, Pat Deegan, KSC for the extraterrestrial chip testing infrastructure, and Alba Orbital for the successful deployment.

And above all, our users for creating amazing open source silicon designs, sharing them with the world, and consistently pushing the limits of those tiny chips can do.
