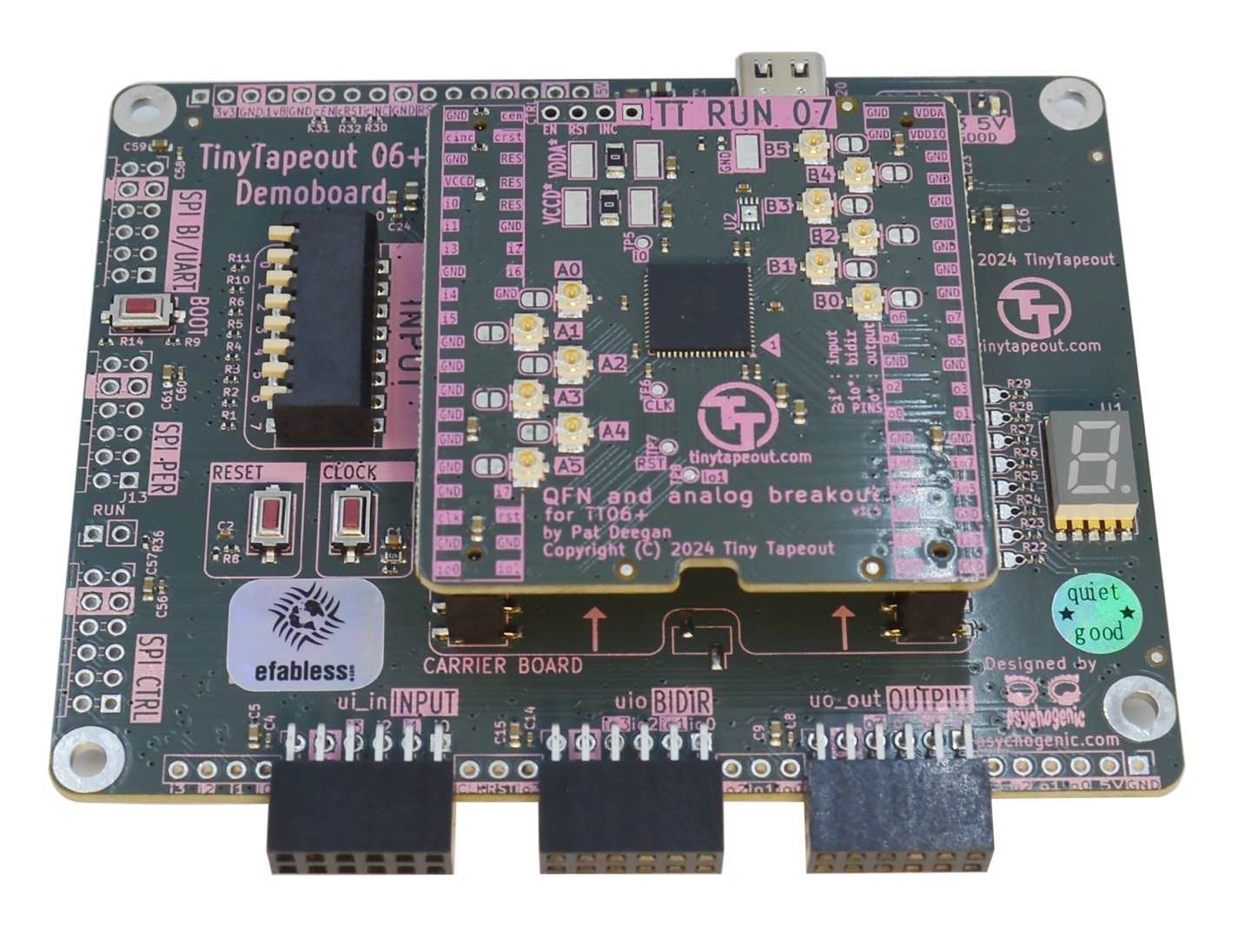

TT07 Development Kit

TT07 Development Kit

This chip’s infrastructure was very close to TT06 with initial support for 3.3v mixed-signal designs. 120 projects were submitted including 24 analog or mixed-signal. Among the designs were an open source Z80, a bandgap reference voltage, Gilbert mixer, the AY-8193 sound generator, Raybox Zero, a 12bit SAR ADC, Ben Eater’s 8 bit CPU and the Lisa Microcontroller.

For more information check the chip’s datasheet: https://tinytapeout.com/runs/tt07/

Board files for this product can be found here: https://github.com/TinyTapeout/pcb-files/tree/main...

This chip is compatible with the following Pmods: TinyVGA, QSPI, Audio, Simon.

This kit comes fully assembled - no soldering required!
