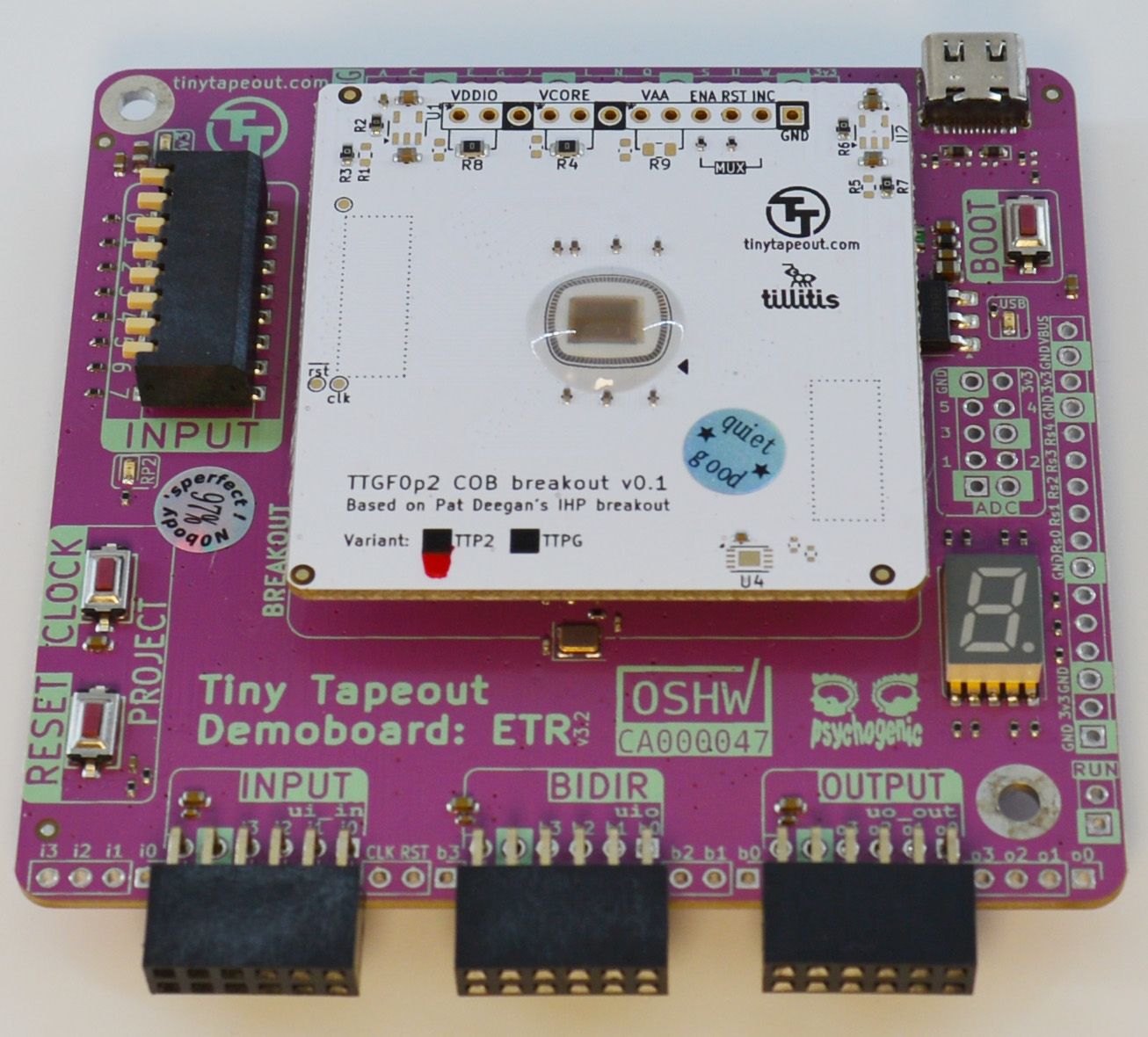

TTGF0p2 Development Kit - P2 edition

TTGF0p2 Development Kit

This kit includes a chip from our second experimental GF180 shuttle.

There are two versions of this development kit - P2 (this one) and PG (power gated). Each version has the same designs on it. The differences are:

1 - The PG version has power gating, meaning that each project is only powered when it is selected. The P2 version designs are all always powered

2 - The PG version has isolated IO/Core voltage. Each version runs at 3.3v by default but with the PG version you can reconfigure the IO voltage to use 5V. Important note here is that attempting to use a different IO and Core voltage with the P2 version will result in chip death! Talk to us on discord before attempting anything.

For more information check the chip datasheet: https://tinytapeout.com/chips/ttgf0p2/

Board files for this product can be found here:

• Larger PCB: https://github.com/TinyTapeout/tt-demo-pcb
• TTGF0p2 breakout board PCB: https://github.com/htfab/breakout-ttgf0p2-cob

Due to the clear colourless glob top glue, this chip may be sensitive to UV light.

This chip is compatible with the following Pmods: TinyVGA, QSPI, Audio, Simon.

This kit comes fully assembled - no soldering required!

GF180mcuD support for Tiny Tapeout was funded by Tillitis and Wit.

The manufacturing of Tiny Tapeout GF 0p2 silicon was funded wafer.space as part of their mission to support open source silicon.
